Chain Cutting Machine

Manufacturer of a wide range of products which include automatic diamond chain cutting machine, single head vertical diamond chain cutting machine, double head chain cutting machine and chain cutting machine.

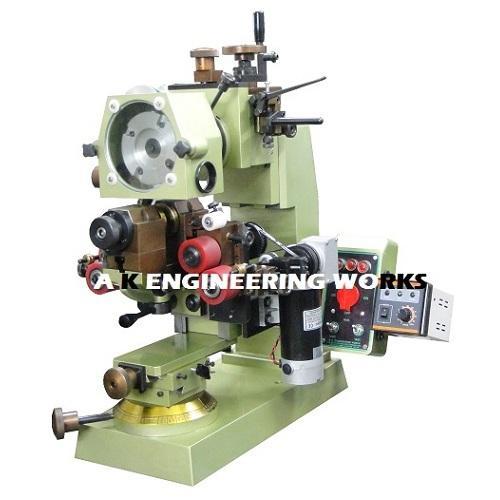

Automatic Diamond Chain Cutting Machine

Product Details:

Minimum Order Quantity 1 unit
Brand AKEW
Automation Grade Automatic
Spindle Speed 8000-10000 rpm
Tool Holder Diameter 120 mm
Puller Speed 0-110 rpm
Machine Dimension 28 x 25 x 32 inches
Packaging Dimension 30 x 30 x 36 inches
Weight 175 kg
Power Supply 1 Phase, 230 V/50 Hz

With the help of our experienced engineers, we are manufacturing and supplying Automatic Diamond Chain Cutting Machine. The offered range of machines is equipped with a single horizontal head. These machines have two Z-axis; one for cut depth adjustment and the other for automatic up-down movement of the chain.

Other Details:

  • Model SH-H Auto is equipped with a Single Horizontal head.
  • Ideal for Step up (Lines, Starts, V’s, Checks) on flat chains. Surfacing & Bevelling can also be done.
  • Automatic cuts can be made at a pre-defined Angle, Depth, and Distance at a time.
  • The machine consists of Two Z-Axis. One for cut depth adjustment and the other for automatic up-down movement of the chain.
  • Moving the chain forward and Z-Axis Up-Down Motion is synchronization via cam system.
  • The machine is complete with a Sturdy Base, Indexing Unit, Ø 110 Mm Revolving Clamping Discs, Vacuum Attachment For Gold Chips Recovery, Chain Winder With Bobbin (Optional), Magnifying Glass Attached To Machine, Depth Indicator Dial, Electric Panel Board, Service Spanners & Spare Belts.

Additional Information:

  • Item Code: SH-H-Auto
